- Length9.3 cm
- MaterialPolystyrene (PS), Plaster
- ManoMano ReferenceME33737638
- Product codeAM118/850F

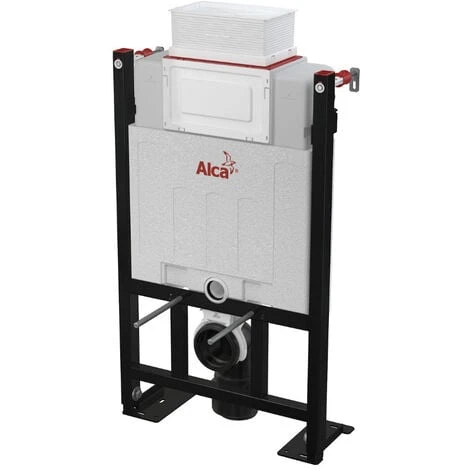

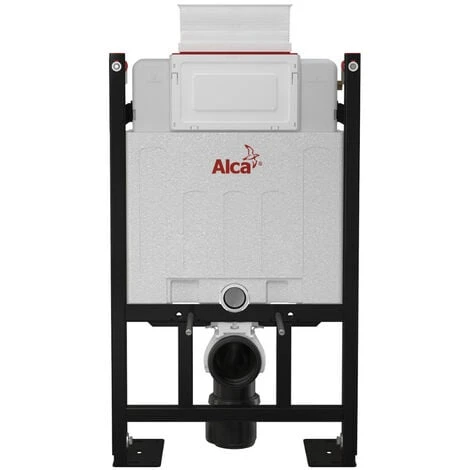

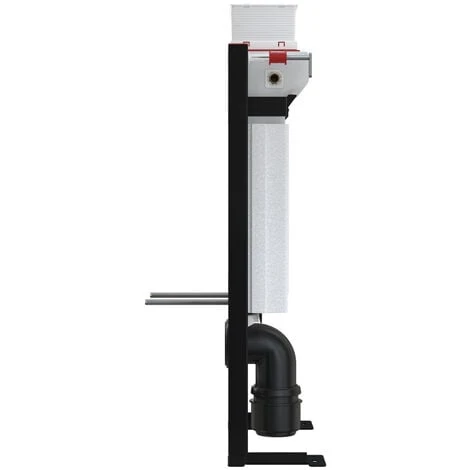

Features of the Freestanding 85cm Wall-Hung Toilet Frame (AM118/850F):
- Freestanding toilet frame
- For wall-hung toilets
- Suitable for installation in front of a load-bearing wall or in a plasterboard construction
- For floor thicknesses of 0 to 200 mm
- For installation of wall-hung toilet bowls with a connection pitch of 180 mm or 230 mm
- Adjustable anchoring feet and spring locking system, with a range of 0 to 200 mm
- The sliding rail support for the waste connector can be adjusted to eight positions between 0 and 93 mm
- Angle valve with the option to connect to the Mepla piping system
- The frame allows for anchoring to a separate plasterboard partition that is sufficiently strong, in front of the load-bearing wall
- For drywall, completely pre-assembled
- The installed module is covered with a plasterboard panel and no additional fixing or anchoring elements are required
- The polystyrene insulation construction prevents condensation from forming on the surface of the tank and dampens tank vibrations in the building structure
- Prepared for connecting a support with a DG 1/2″ conversion for bidet seats and sprays
- Double flush independently adjustable with hygiene reserve
- Top or front actuation
- Maintenance work can be performed without tools
- Water supply from the back/top
- The tank is made of a single piece, ensuring 100% waterproofing
- The service opening cover simplifies assembly and prevents the penetration of moisture and impurities
- Adjustable installation depth from 20 to 95 mm
- Frame material: powder-coated metal
- Metal feet
- Schell shut-off valve included
