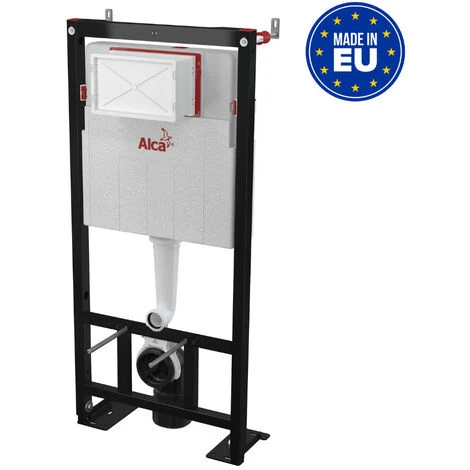

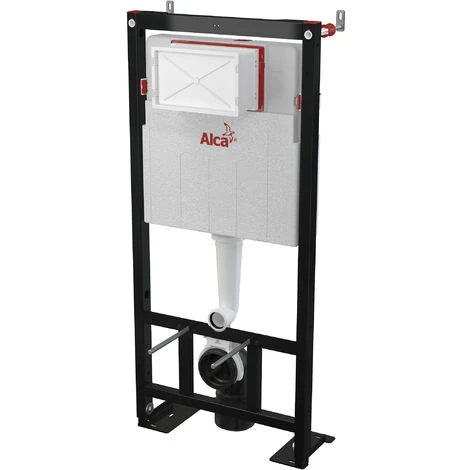

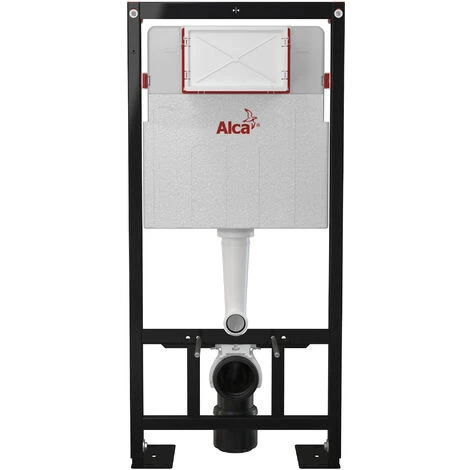

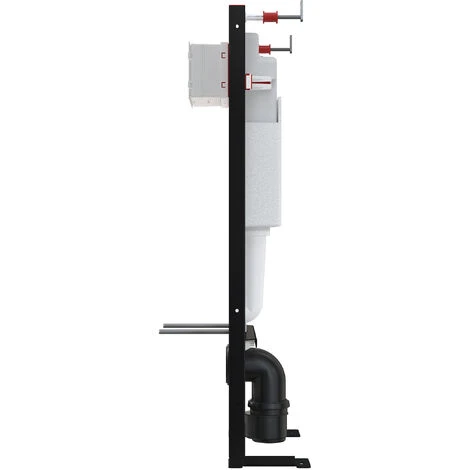

Alca Self-supporting Frame For Wall-hung Toilets (AM101/1120-DN100)

Features of the Self-supporting frame for wall-hung toilets (AM101/1120-DN100) :

• For mounting on load-bearing or non-load-bearing walls
• For floor thickness 0-200 mm
• For installation of wall-hung toilet bowls with a connection pitch of 180 mm or 230 mm
• Adjustable anchor feet and spring locking system, with a range of 0-200 mm
• Visible marks for levelling and centre line
• Sliding Rail support for the drain connector can be adjusted to eight positions between 0 and 93 mm.
• Angle valve with possibility of connection to the Mepla pipe system
• For drywall, completely pre-assembled
• The installed module is covered with plasterboard and no additional fixing or anchoring elements are required.
• The polystyrene insulation construction prevents condensation from forming on the tank surface and dampens tank vibrations.
• Prepared for the connection of a bracket with a DG 1/2″ conversion for bidet seats and sprays
• Independently adjustable dual flush with hygienic reserve
• Compatible with all AlcaPlast flush plates
• Water supply from the back/top
• The cistern is made in one piece, thus ensuring 100% tightness.
• The cover of the service opening simplifies installation and prevents the penetration of moisture and dirt.
• Installation depth adjustable from 20-95 mm
• Installation depth 125 mm
• Frame material: powder-coated metal
• Metal feet
• Including schell shut-off valve
• Including 90/100 reduction sleeve

Alcaplast was founded in 1998 in the Czech Republic. It currently has seven foreign subsidiaries and exports to over 40 countries worldwide. Alcaplast is the largest manufacturer of sanitary ware in Central and Eastern Europe and produces a wide range of over 580 items – valves, siphons, modules, grates, drains, toilet seats and other products. Quality and design are the two main pillars of the company.
