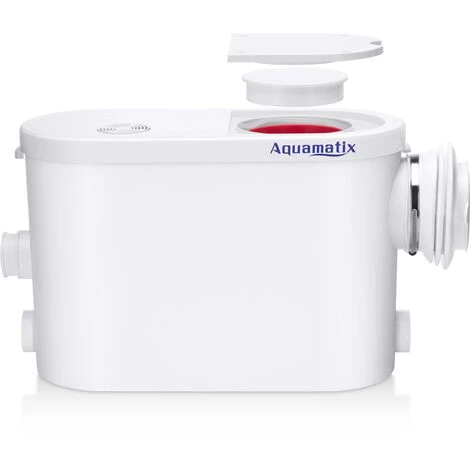

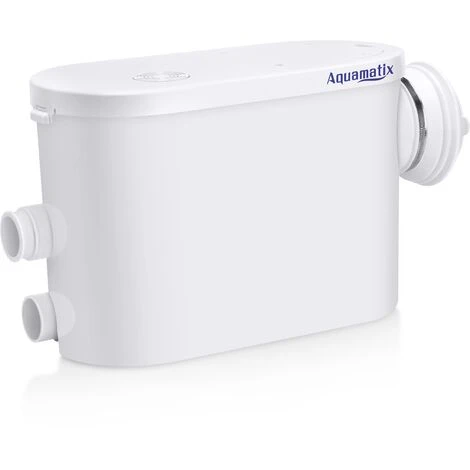

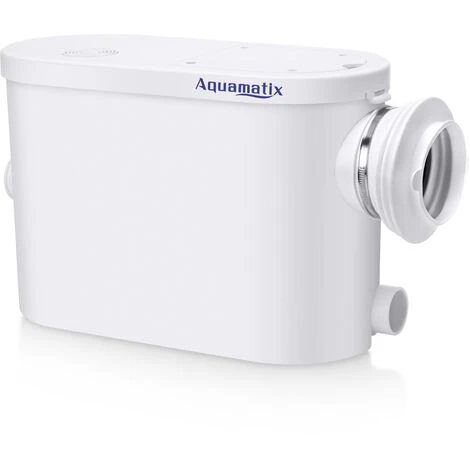

Aquamatix Silencio 400W Sanitary Macerator Pump WC Suspended Toilet Shower Silent Lift Pump

Aquamatix Silencio S is a wall-hung 400 watt Sanitary Macerator that efficiently evacuates waste water from sanitary fixtures and discharges it into the main plumbing line. It is designed with 3 inlets that connect to multiple sanitary fixtures such as toilet, shower, bathtub, kitchen sink, etc.

It has a pumping distance of up to 8m vertically and 80m horizontally, with a maximum flow rate of 145L/min. It is equipped with a 30-50 dBs quiet motor and is safe to use at home. It also has a carbon filter to minimize strong odors, and a removable repair panel to be accessible when troubleshooting.

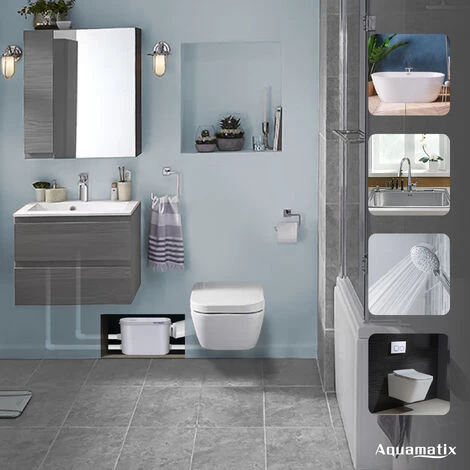

Its powerful motor Sanitary Grinder allows the installation of showers, a kitchen sink or a bathtub in the cellar, the attic or any additional space, even below the level of discharge. This product also comes with a 2 year warranty.

The sewage delivery height can be up to 8 m and the distance up to 80 m, but the total delivery capacity of the lifting unit is composed of the ratio between these two values. In this case, 1 meter vertically equals 10 meters horizontally.

When installing the pump, please use this as a reference for the pump distance:

Vertical pump at 0m = Horizontal pump at 80m
Vertical pump at 1m = Horizontal pump at 70m
Vertical pump at 2m = Horizontal pump at 60m
3m vertical pump = 50m horizontal pump
Vertical pump at 4m = Horizontal pump at 40m
Vertical pump at 5m = Horizontal pump at 30m
Vertical pump at 6m = Horizontal pump at 20m
Vertical pump at 7m = Horizontal pump at 10m
Vertical pump at 8m = Horizontal pump at 0m

Power	AC 220V-240V 50Hz
Power	400 Watt
Noise level	25 – 35 dB
Max. temperature	70°C
Manual button	No
Carbon filter	yes
Security alarm	No
Enter	1 x 100 mm (WC) 2 x 38/40 mm (Sides)
Output	1 x 23/28/32mm (Adjustable)
Dimensions	488.5 x 181 x 265mm
Power cable	1.7m
Net weight	7kg
Warranty	2 Years

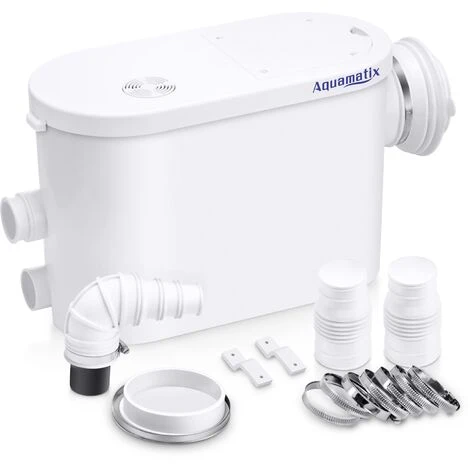

Included	8 Clamps 2 plastic plugs Check valves (integrated) Manual included
