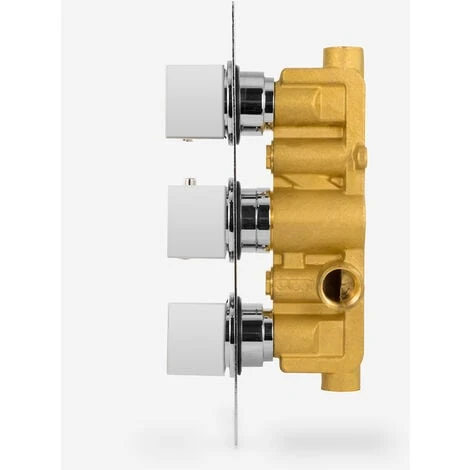

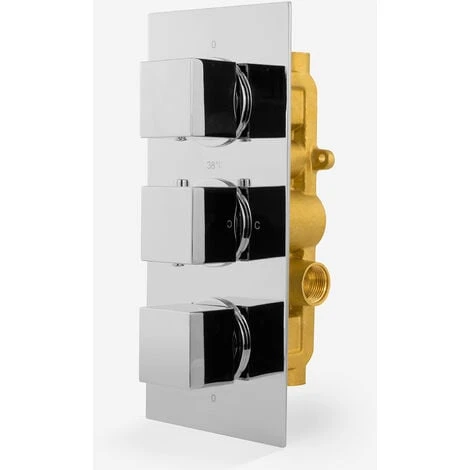

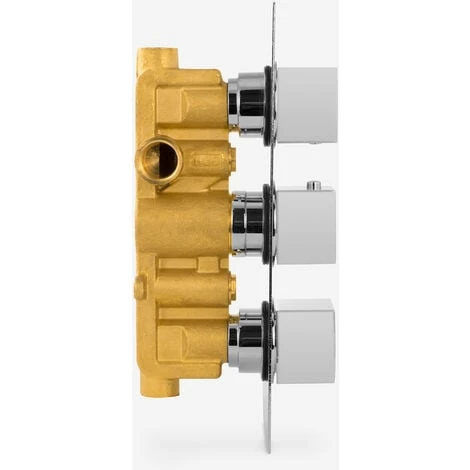

Cameo Modern Square 3 Dial 2 Outlet Concealed Shower Valve – Chrome

Description

This Concealed Thermostatic Valve will compliment any modern bathroom suite, offers thermostatic showering via three easy-to-operate controls for temperature and flow. Allows the control of a combination of 2 outlets.

They also come with a 10 Year Guarantee

Thermostatic Valve

• Top dial controls water diverter to one outlet (Shower head)
• Middle dial – Controls water temperature
• Bottom dial – Control water to outlet (handset)
• High Quality Design
• Chrome Finish
• Thermostatically controlled
• Manufactured from highly durable brass
• Operating range 20 – 50 deg C with 38 deg C safety button
• Built in non return valves to prevent back flow and filters to protect the thermostatic mechanism
• Chosen temperature maintained to within +/-1ºC
• Pre-set maximum temperature
• Automatic shut off in event of water cold supply failure
• UK standard size fitting

Suitable for the following water systems

• Combi-boilers
• Gravity Fed systems
• MegaFlow Systems
• Pumped systems
• Un-vented systems
• Pressurised cylinder systems
• Subject to a minimum of 1.0 bar water pressure

Package Contents

• Concealed Thermostatic Mixer Valve
