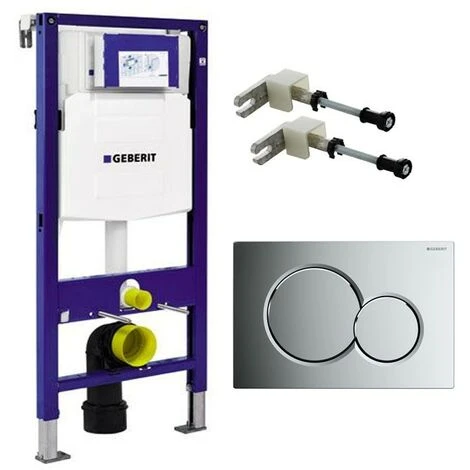

Geberit Duofix 1.12m WC Toilet Frame UP320 Cistern + SIGMA01 Chrome Plate

Geberit 111.383.00.5 Application
For installation of a wall-hung WC with bolt fixings set at 180 or 230 mm centres
For installation in a partial-height Duofix system wall in front of a solid or drywall construction
For mounting in front of a solid or drywall construction
For a screed of 0 – 200 mm (not in room height applications)
For connecting Geberit AquaClean
Characteristics
Self-supporting
Frame with C profile 40/40 mm
Powder-coated frame, ultramarine blue
Galvanised leg supports, steplessly adjustable 0 – 200 mm
Feet can be retracted 5 cm
Rotating foot plate, for installation in UW50 and UW75 profiles
Frame with holes 9 mm for fastening in wood frame construction
Sound-absorbing actuator rods, tool-free, fast adjustment
Concealed cistern fully insulated against condensation
Concealed cistern for tool-free mounting and maintenance
Frame height 1120 mm
With wall brackets to allow up to a 200 mm duct. For larger ducts up to 400 mm use extension bolts 111.887.00.1
Tool-free fastening for outlet bend, sound-absorbing, adjustable in depth with 8 positions, adjustable range 45 mm
Connection hose to angle stop valve can be screwed without tools
Water supply connection at centre back or at the top
Geberit Sigma concealed cistern 12 cm (UP320) with front actuation
Dual flush with Sigma80, Sigma60, Sigma50, Sigma20, Sigma01 or Bolero flush plates
Single flush with Sigma10, Rumba, Mambo or Tango flush plates
Dual flush with pneumatic button
Single flush with touchless flush or pneumatic buttons
The protection cover protects the service opening against moisture and dirt and can be mounted without tools and cut to length
Universal water supply connection compatible with MeplaFix, can be mounted and operated without tools
Self-locking feet for tool-free alignment of the frame, (friction feet have to be locked with spanner)
For pans with contact surfaces smaller than 170 mm (see accessory 111.847.00.1)
Flush valve features settings to enable either a 6l and 3l flush or a 4.5l and 3l flush. For flush volumes of 4l and 2l a low flush beaker is required (241.894.00.1).

The Geberit Sigma01 plate is for use with Geberit 112cm Duofix frames UP320 and UP720. A direct replacement for the for Samba flush plate 115770xx1.

Complete with push rod, 2 spacer bolts and fitting frame.

NOT suitable for UP200, Twinline and Artline cisterns.

Requires just a gentle push to operate the desired flush volume of the WC. Compatible with Geberit’s insert for in-cistern blocks
