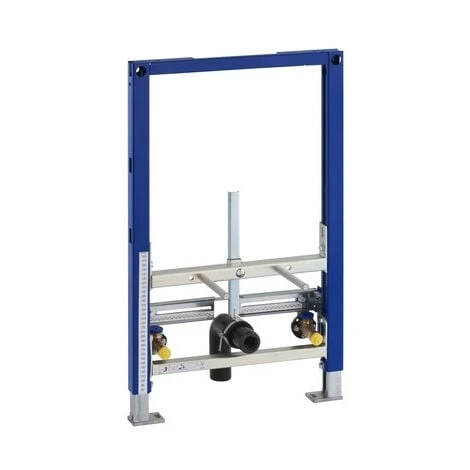

Geberit DuoFix Frame For Hanging Bidet (111.515.00.1)

Features

– Supporting frame for drywall or reinforced wall
– Frame with C-profile 4/4 cm
– Powder-coated frame surface, Geberit colour blue
– 5 cm sliding support
– Reversible plates for mounting on UW50 and UW75 profiles

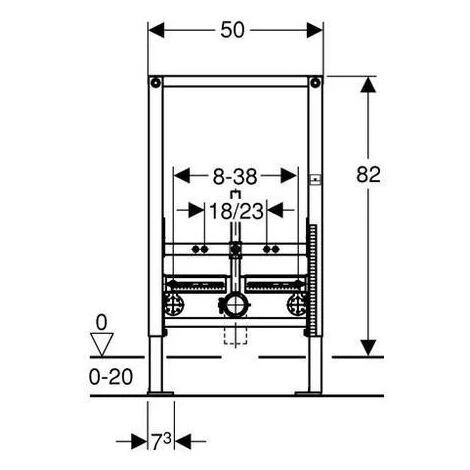

– Distance to bidet fixing 18 cm or 23 cm
– Frame with ø 9 mm holes for fixing to wooden structures
– Zinc-plated supports, adjustable 0-20 cm
– Element height 82 cm
– Brackets with brakes for tool alignment

.

Scope of delivery
– Outlet ø 50 mm
– Seal ø 44/32 mm
– 2 threaded rods M12 for ceramic fixing
– Mounting material
– Not included: Pre-assembled assembly kit

.
Purpose of use

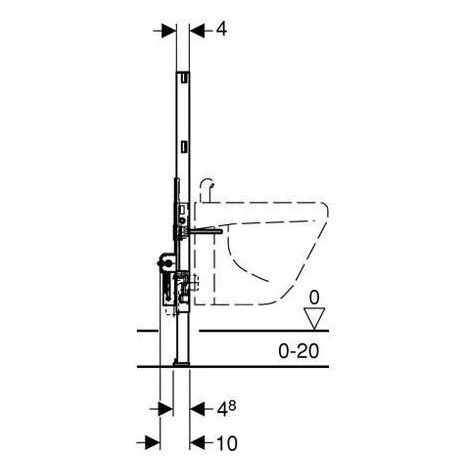

– For floor thickness 0 – 20 cm
– For installation in the wall of the Duofix system partially high before
a solid wall or a wall made by a dry process
– For installation in the wall of the Duofix system at full height
room
– For installation in a light room at full height
– For installation in partial or full height room
GIS walls in front of a solid wall or a dry wall
process
– For installation in front of a solid wall or a dry wall
process
– For installation in a partial or full front wall installation
the height of the room in front of a solid wall or wall
dry process
– For bidet with mounting bracket
