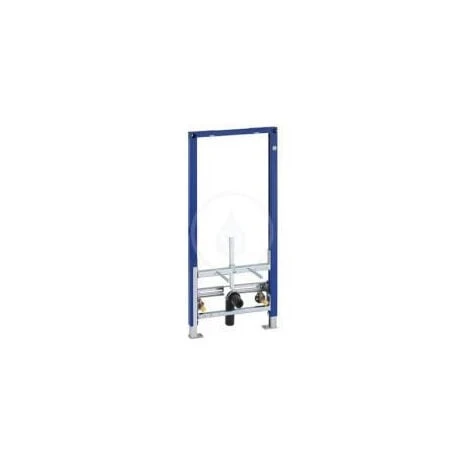

Geberit Duofix Mounting Element For Wall-hung Bidet, H: 112 Cm (111.510.00.1)

Features of the Geberit Duofix Mounting element for wall-hung bidet, H: 112 cm (111.510.00.1) :

• For dry construction
• For pre-wall installations that are partially high or high to the room height
• For suspended bidets with self-supporting fittings
• For floor thicknesses from 0 to 20 cm
• For one-hole fittings
• For dry installation

Features :

• Self-supporting frame with applied powder coating
• Frame with ø 9 mm drilled holes for fixing to a wooden structure
• Galvanised supports
• Supports adjustable from 0 to 20 cm
• Supports with anti-slip treatment
• Pivoting heel plates
• Depth of foot plate suitable for installation in U profiles UW 50 and UW 75 and in Geberit Duofix system profiles
• Installation distance of the bidet 18 or 23 cm
• Height-adjustable bidet support
• Mounting for height-adjustable, sound-insulated connection bend
• Height and width-adjustable mounting bracket
• Protective cap for single pressure test with cold water up to max. 15 bar / 1500 kPa

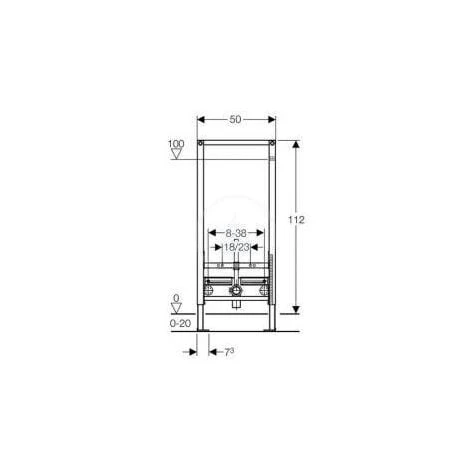

• Height: 112 cm

Brackets part no. 111.815.00.1 not included, to be ordered separately.

Intended use

• For one-hole fittings
• For dry installation

Features

• Height: 112 cm
