Geberit Toilet Set 112cm Support Frame + Swiss Aqua Technologies Rimless Bowl + White Flush Plate (SATrimlessGeb3)

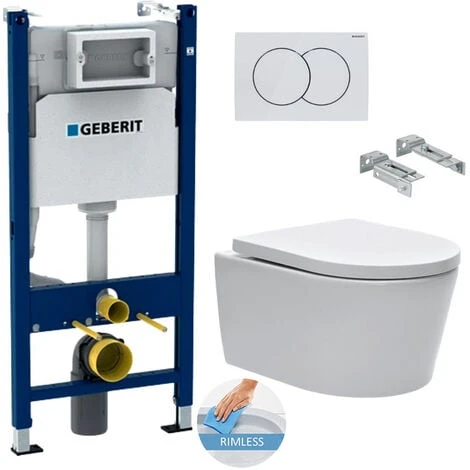

Features of the Toilet set 112cm Support Frame + Swiss Aqua Technologies rimless bowl + White flush plate (SATrimlessGeb3)

• Swiss Aqua Technologies Rimless wall-hung toilet with invisible fixing and fall-brake flap (SATrimless)
• Geberit DUOFIXBasic for wall-hung toilets, with Delta cistern (111.153.00.1)
• Geberit Duofix wall mounting set for self-assembly (111.839.00.1)
• Geberit DELTA20 flush plate white (115.107.11.1)

.

Geberit DUOFIXBasic for wall-hung toilets, with Delta cistern (111.153.00.1) :

Use:

• For pre-wall installation, installation in whole or in part
• For a solid wall or a dry wall
• For installing a wall-hung toilet with a fixing distance of 18 cm or 23 cm
• For floor thickness 0 – 20 cm
• For front control
• Geberit AquaClean
• Not suitable for concreting

Features:

• Delta Geberit flush cistern 12 cm (UP100) front control, against condensation
• Adjustable large flow rate
• Small fixed flush rate
• Adjustable instantaneous flush
• Water supply from the rear/upper centre
• Connection pipe to the corner valve can be screwed on manually
• 2 flushes with Geberit Delta20 control knobs
• Frame with ø 9 mm holes for fixing in wooden structures
• Galvanised supports, infinitely adjustable from 0 to 20 cm
• Plastic base plates, depth suitable for installation UW50
• Installation depth 12 cm

Technical information:

• Rinse quantity – factory setting 6 and 3.5 l
• Large flush volume – setting range 4.5 / 6 / 7.5

  Included in the frame:


• 2 M12 threaded rods for ceramic fixing
• Drain valve for 2 flush volumes
• Cover for installation, polystyrene foam
• 2 protective caps
• Corner valve R 1/2″ with adapter ring
• Geberit AquaClean water supply hose
• Connection set ø 90 mm
• Waste bend for WC, PE-HD, ø 90/90 mm
• Adapter, ø 90/110 mm
• Fixing materials
• Geberit Duofix wall bracket set for self-assembly (111.839.00.1)

.

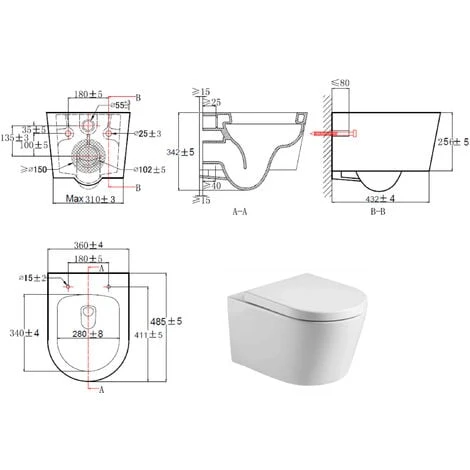

Swiss Aqua Technologies rimless bowl + softclose seat (SATrimless) :

• Brand: Swiss Aqua Technologies
• Material: Ceramic
• Compact toilet adapted to small spaces
• Simple and clean design of the toilet bowl
• Rimless bowl
• Hidden fixings
• 48 cm depth
• Economical 3 / 4.5 litre flush
• Flap with drop-brake
• Detachable flap
• Easy to clean thanks to the flangeless system and removable flap
• Quick installation

Geberit Dual flush plate DELTA20 (115.107.11.1) :

Delta has 2 buttons, one for a small 3L flush and one for a large 6L flush

• Water saving
• Frontal activation
