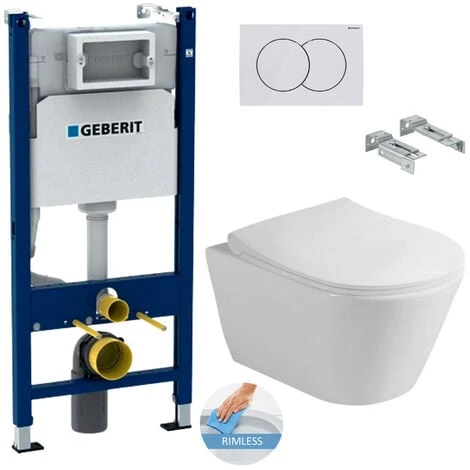

Geberit Toilet Set Duofix Frame + Lucco Avva Rimless Toilet + Softclose Seat + White Flush Plate (AvvaGeb3)

Features of the Toilet set Duofix frame + Lucco Avva rimless toilet + Softclose seat + White flush plate
(AvvaGeb3) :

• Geberit Delta Pack Duofix support frame 112cm + Delta20 white trigger plate + wall anchors (111.154.11.1)
• Lucco Avva Rimless wall hung toilet with soft close seat, White (Avvarimless)

.

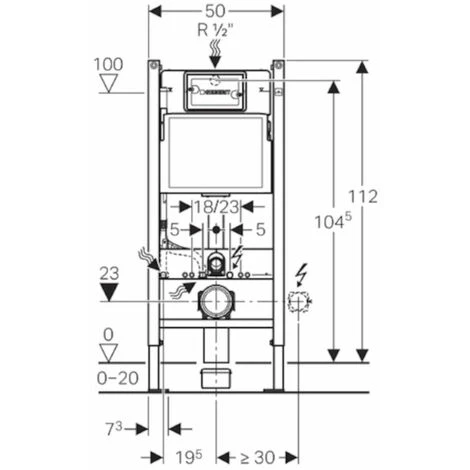

Geberit DUOFIXBasic for wall-hung toilets, with Delta tank, for Delta control buttons (111.153.00.1) :

Purpose of use

• For installation in the pre-wall installation in all or part
• The height of the room in front of a solid wall or a dry wall
• For mounting a wall-hung toilet with a fixing distance of 18 cm or 23 cm
• For floor thickness 0 – 20 cm
• For front control
• For Geberit control, use the Delta control buttons
• For Geberit AquaClean
• Not suitable for concreting

Characteristics

• Delta Geberit flush tank 12 cm (UP100) front control
• Flush tank against condensation
• Adjustable large flow rate
• Small fixed flush rate
• Adjustable instantaneous flushing possibility
• Water supply from the rear/upper center
• Connection pipe to the corner valve can be screwed on manually
• 1 flush with Geberit Delta15 control knob
• 2 flushes with Geberit Delta20 control knobs
• Powder-coated frame surface, color blue Geberit self-supporting element
• Frame with ø 9 mm holes for fixing in wooden structures
• Galvanized supports, infinitely adjustable from 0 to 20 cm
• Plastic base plates, depth suitable for installation UW50
• Installation depth 12 cm

Technical information

• Flush quantity – factory setting 6 and 3.5 l
• Large flush volume – setting range 4.5 / 6 / 7.5 l

Scope of delivery

• 2 threaded rods M12 for ceramic fixing
• Drain valve for 2 flush volumes
• Cover for rough-in for service hole, polystyrene foam
• 2 protective caps
• Corner valve R 1/2″ with adapter ring
• Geberit AquaClean water supply hose
• Repairing the knee joint
• Connection set ø 90 mm
• Waste bend for WC, PE-HD, ø 90/90 mm
• Adapter, ø 90/110 mm
• Fixing material
• Does not contain: Control knob
• Does not contain: Construction kit for wall mounting

.

Lucco Avva Rimless wall hung toilet with soft close seat, White (Avvarimless) :

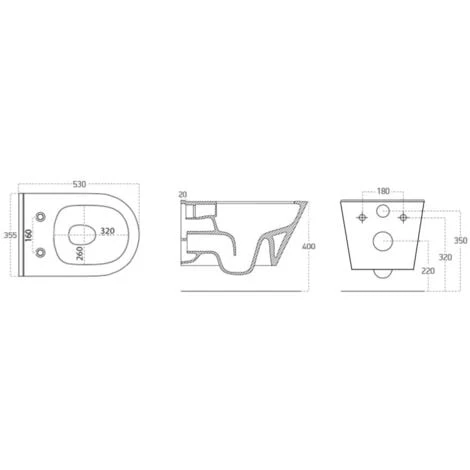

Lucco Avva Wall mounted rimless bowl , White (100314) :

• Material: Ceramic
• Design bowl
• Rimless
• Invisible fixings
• Easy to clean
• Quick installation
• 53x36cm

.

LIVEA Slim Elegance softclose toilet seat in Duroplast, White (0411) :

• Colour: White
• Slim
• Softclose
• Quick Release: Allows quick removal and installation of the seat

.

Geberit DELTA20 white flush plate (115.107.11.1) :

• Delta has 2 buttons, one for a small 3L flush and one for a large 6L flush
• Water saving
• Frontal release

Please note! It is imperative to check the products upon receipt. Any damage must be noted in front of the delivery person and indicated precisely for each product on the delivery note. No claim can be accepted afterwards, as the carriers are very strict in this respect. We thank you for your understanding.
