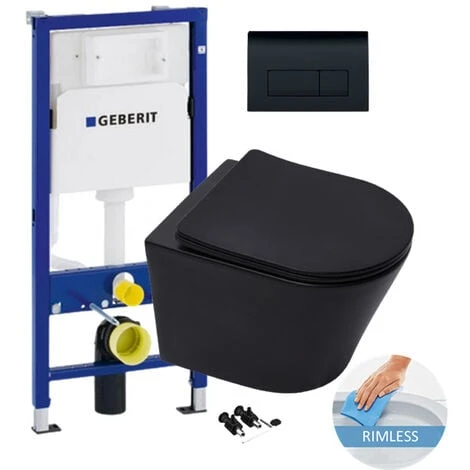

Geberit Toilet Set Duofix Frame + Matt Black SAT Infinitio Rimless WC + Soft Close Seat + Delta 50 Black Plate (BlackInfinitioGeb-7)

Choose the quality and simplicity of installation of the Toilet set Duofix frame + SAT Infinitio rimless WC + soft close seat + Black matt Delta 50 flush plate (BlackInfinitioGeb-7).

This toilet pack combines the Geberit brand and the Infinitiorimless from Swiss Aqua Technologies, products of renowned quality. This support frame, together with the Infinitio wall-mounted toilet bowl, will provide solutions for all your projects and will certainly satisfy all your expectations.

Features of the Toilet set Duofix frame + black matt SAT Infinitio rimless WC + Soft close seat + Delta 50 black flush plate (BlackInfinitioGeb-7) :

• Geberit Duofix UP100 support frame + cistern for WC 112 cm (458.103.00.1)
• Swiss Aqua Technologies Infinitio suspended rimless toilet in matt black and invisible fixations + softclose seat (BlackInfinitio)
• Geberit Delta 50 Two-touch black flush plate (115.119.DW.1)

.

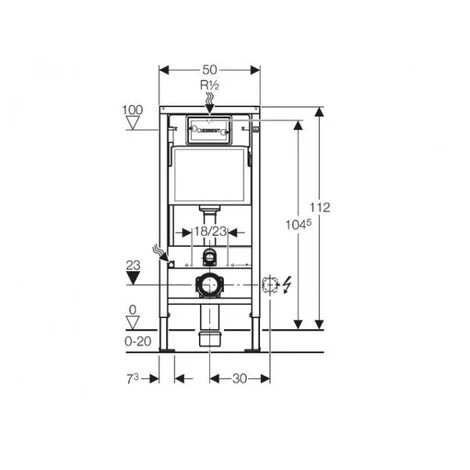

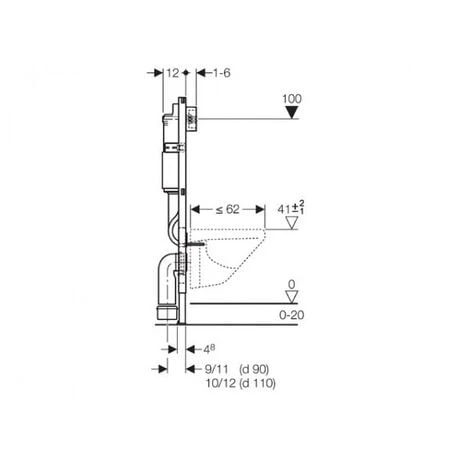

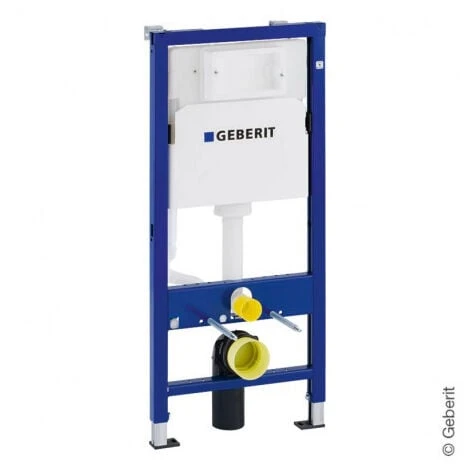

Geberit Duofix UP100 support frame + cistern for WC 112 cm (458.103.00.1) :

Geberit Duofix basic UP100, 112 cm, with concealed water tank UP100

Attention: Only the Geberit Delta21, Delta20 or Delta50 flush plate is compatible

The set includes :

• 112 cm galvanised support frame with adjustable feet from 0-20 cm
• UP100 water tank (with 25-year manufacturer’s warranty on spare parts)
• pre-painted frame in Geberit blue
• support feet with cm scale marking
• swivel feet for mounting in UW50/UW75 profile
• crossbar for cladding support
• 2 threaded rods M12 for fixing the ceramic tiles with an intermediate distance of 18 or 23 cm
• concealed cistern 4-6-7.5 l, insulated against condensation
• two-stage front operation with Delta21, Delta20 or Delta50 plates
• supply from the back/top
• angle stop valve R1/2″,
• housing for inspection hatch
• construction protection made of styrophor
• drain elbow Ø 90 mm
• sleeve fitting Ø 90 mm
• transition sleeve Ø 90/110 mm
• fixing material

This set does not include :

Wall bracket for load-bearing wall 111.815.00.1

.

Swiss Aqua Technologies Infinitio suspended rimless toilet in matt black and invisible fixations + softclose seat (BlackInfinitio) :

• Brand : Swiss Aqua Technologies
• Material : Ceramic
• Finish : black mat
• Compact toilet adapted to small spaces
• Bowl with a simple and pure style
• Toilet without flange
• Hidden fixtures
• 48 cm depth
• 3 / 6 L flush
• Flap with fall brake
• Detachable seat
• Easy to maintain thanks to the flangeless system and the removable seat
• Quick installation

.

Geberit Delta 50 Two-touch black flush plate (115.119.DW.1)

• Double button
• Scope of delivery :
• Mounting frame
• Mounting material

.
