- Length52.0 cm
- Width35.5 cm
- Height35.5 cm
- Weight25.0 kg
- MaterialCeramic
- Tank capacity7.5 l
- Evacuation positionDouble
- Output typeDouble
- Support frameWall
- ColourBlue, White
- ManoMano ReferenceME9458707
- Product code39186geb1

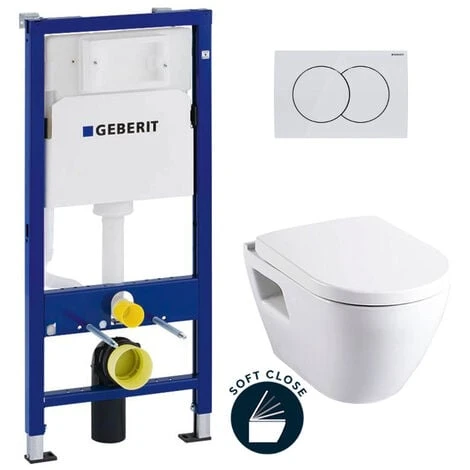

Features of the Toilet Set Duofix UP100 Support frame + Serel SM softclose seat and SM10 bowl + White plate (39186GEB1) :Â
Introducing the new Solid Geberit UP100 toilet set ! This toilet set combines the best of the Serel (Grohe partner) and Geberit brands to give you aesthetics, comfort and solidity.
+ Cased bowl: very aesthetic and easy to clean

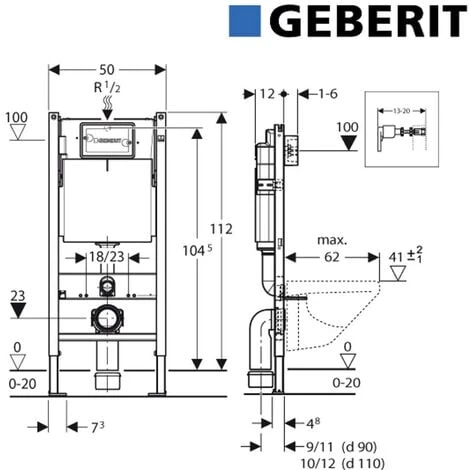

- Duofix UP100 support frame + cistern for WC 112 cm (458.103.00.1)
Duofix UP100 support frame + cistern for WC 112 cm (458.103.00.1)
- 112 cm galvanised support frame with adjustable feet from 0-20 cm
- UP100 water tank (with 25-year manufacturer’s warranty on spare parts)
- pre-painted frame in Geberit blue
- support feet with cm scale marking
- swivel feet for mounting in UW50/UW75 profile
- crossbar for cladding support
- 2 threaded rods M12 for fixing the ceramic tiles with an intermediate distance of 18 or 23 cm
- concealed cistern 4-6-7.5 l, insulated against condensation
- two-stage front operation with Delta21, Delta20 or Delta50 plates
- supply from the back/top
- angle stop valve R1/2″,
- housing for inspection hatch
- construction protection made of styrophor
- drain elbow Ø 90 mm
- sleeve fitting Ø 90 mm
- transition sleeve Ø 90/110 mm
- fixing material
