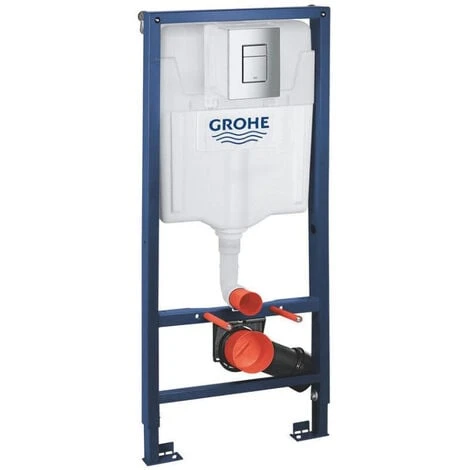

GROHE 38772001 Rapid Sl 3-in-1 Set For Wall-Hung Toilet With Wall Brackets And Skate Cosmopolitan Chrome Flush Plate

ence Features of the GROHE 38772001 Rapid Sl 3-in-1 Set for Wall-Hung Toilet with Wall Brackets and Skate Cosmopolitan Chrome Flush Plate :

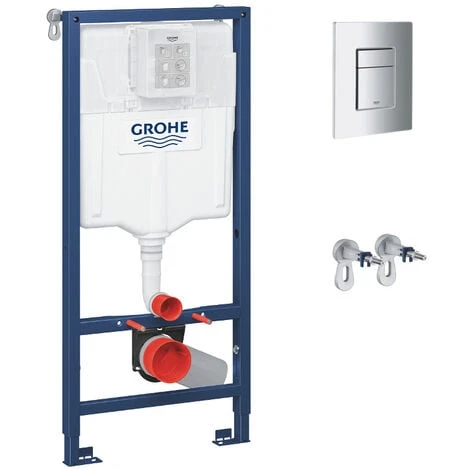

This set includes:

Grohe Rapid SL toilet support frame (38528001)

GD 2 cistern, with inspection hatch

Height: 1,13 m

Steel frame with epoxy finish

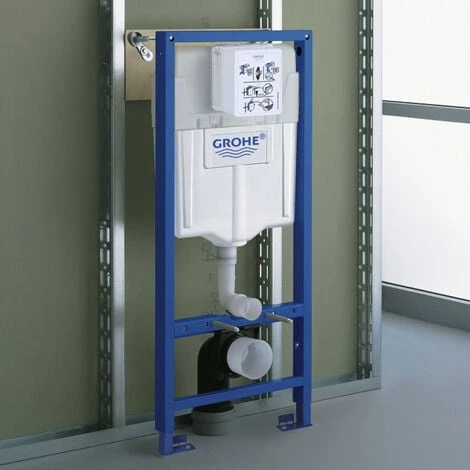

Mounting on load-bearing walls or in light weight double framed walls

Quick adjustment and locking of the height up to 200 mm

Supplied with fixing material

TÜV approved

Supplied with bolts and nuts for fixing the toilet bowl, ceramic fixing

Distance between fixings 180/230 mm

PP drain elbow Ø 90 mm

Depth and height adjustable (200 mm)

Reducing connection DN 90/110

Drainage and supply fitting

Tank 6 – 9 l

Factory setting 3 and 6 l

Pneumatic release mechanism (AV1) for one-touch (interruptible) and two-touch (interruptible) control panel

Side or rear supply

Condensation-proof tank

Water supply with angle valve and flexible connection

Installation of the template, horizontal or vertical, without tools

Skate Cosmopolitan toilet flush plate (38732000)

– Two-touch or interruptable

– For pneumatic mechanism

– 156 x 197 mm

Grohe Rapid SL wall bracket fixing kit (3855800M)

The reference 38811000 replaces the reference 38772001.
