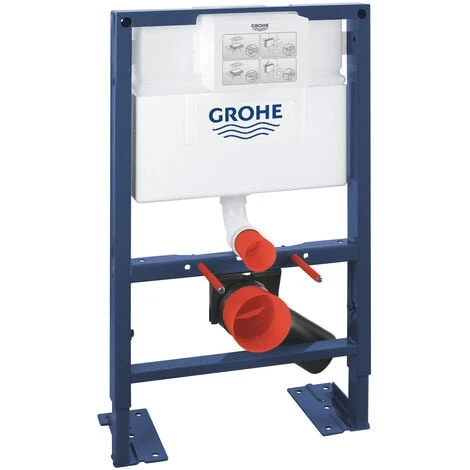

Grohe Rapid SL Support Frame For WC 0.82m (38587000)

Rapid SL for WC

height: 82 cm
for free-standing installation, for on-the-wall installations or studded walls
powder coated steel frame, self-supporting
for dry-cladding, completely pre-assembled

supplied without wall brackets 38 558 00M

with fixed connections
lockable
TÜV approved
fixing material
2 WC fixing bolts
fixing device for ceramic
distance of fixing bolts 180/230 mm
outlet bend Ø 90 mm
depth adjustable
reducer Ø 90/110 mm
inlet and outlet connecting set

flushing cistern 6 – 9 l containing the following features:
pneumatic discharge valve offering 2 modes of

operation: dual flush or single flush
front/top actuation
water supply from left/right or back
low noise (group I acc. to German Noise Specification)
Insulated against condensation
½” water supply connection including integrated
angle valve and push fit flexible hose union
inspection shaft incl. protection during construction phase

GROHE EcoJoy® water saving

for on-the-wall installation please order wall brackets 38 558 00M (sold separately)
for mounting of small flush plates please order revision shaft 40 950 000 (sold separately)
