Jackon JACKOBOARD® Sabo Installation Kit For Cladding WC Frame Systems (4521871)

Features of the JACKOBOARD® Sabo Installation kit for cladding WC frame systems (4521871):

The complete solution for finishing consealed WC systems

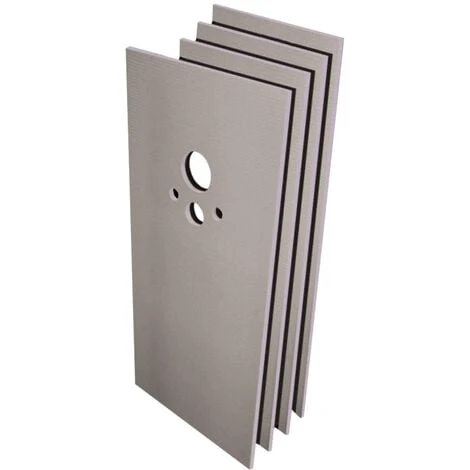

The JACKOBOARD® Sabo installation kit enables fast and easy cladding of all standard WC elements. This two-piece special element made of water-repellent extruded polystyrene foam (XPS) has machined holes to accommodate all standard toilet connections. With extremely high compressive strength, its special coating on both sides also permits the time-saving direct application of tiles.

Product characteristics JACKOBOARD® Sabo:

• Made of extruded polystyrene foam
• Water-repellent
• With special coating on both sides
• Low weight, approx. 3–6 kg/m2
• Thickness: 20 mm
• Board dimensions: 1300 x 600 mm and 1300 x 900 mm
• Excellent thermal insulation properties with λD = 0.035 W/(m·K)
• High compressive strength > 300 kPa
• For rooms subject to high moisture loads

Benefits JACKOBOARD® Sabo:

• For all standard toilet frame systems
• Easy to install
• Tiles can be applied directly
• Includes 10 self-tapping screws and 10 insulation board discs

Ideal application:

• For the fast and easy cladding and installation of all standard WC elements with and for direct tiling without preparatory work.

The following (not included)  accessories are necessary:

• Mounting glue
• Reinforcement band
• Self-drilling metal screws
• Perforated washers

Made in Germany

10 years warranty
